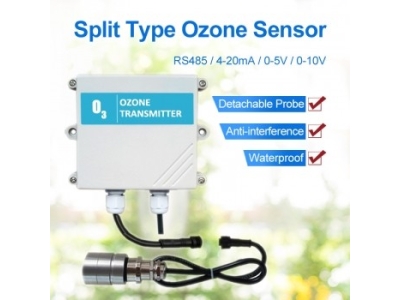

Split O3 sensor ozone sensor Ozone Gas Leak Detector

O3 sensor can test the concentration of ozone in the air. The split type fixed O3 gas detector can be widely used in factories, offices, warehouses, mines, and other online site environmental monitoring.

Gas Type： O₃
Color： blue and white
Model： JXBS-3001-O3

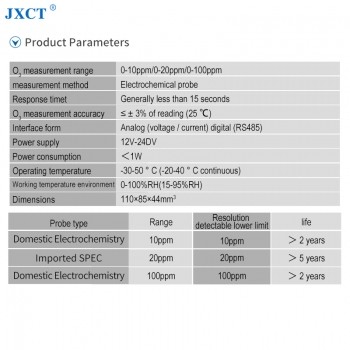

Ozone gas detector parameter
Range	0-10ppm/0-20ppm/0-100ppm
Precision	≤±3% of reading(25℃)
Baud rate	2400/4800/9600
Output singal	RS485/ Analog
Power supply	12-24V DC
Power consumption	＜4W
Working environment	-30℃~50℃ 0~100%RH
Response time	＜15s

label: sensor analysis
